Project Report

Heathrow Airport Terminal 4 | London, UK

The aging glass skylights of Terminal 4 at London’s Heathrow Airport were in need of repair. The challenges for the project’s main contractor was finding a way to keep the project moving with little disruption to this busy terminal and also maintaining the airport’s security protocol.

The answer was a single-source solution presented by Structura UK, the curtainwall engineers who are the exclusive distributor of Kalwall products in the United Kingdom and Ireland.

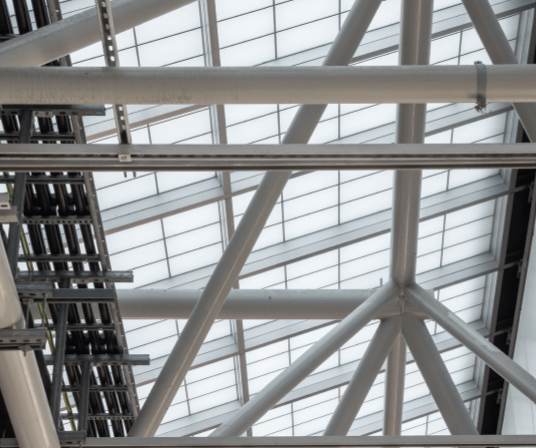

18,836 square feet (1750 square meters) of Kalwall Skyroof® cladding were used above the terminal’s International Departure Lounge and check-in desks to replace the 30+ year old glass skylights. The Kalwall translucent sandwich panels are fully Aviation Security in Airport Development (ASAID) compliant with regards to blast performance and improve the solar control and insulation for the space below. In fact, Kalwall 100™ panels were specifically chosen to exceed code requirements, therefore future-proofing the project.

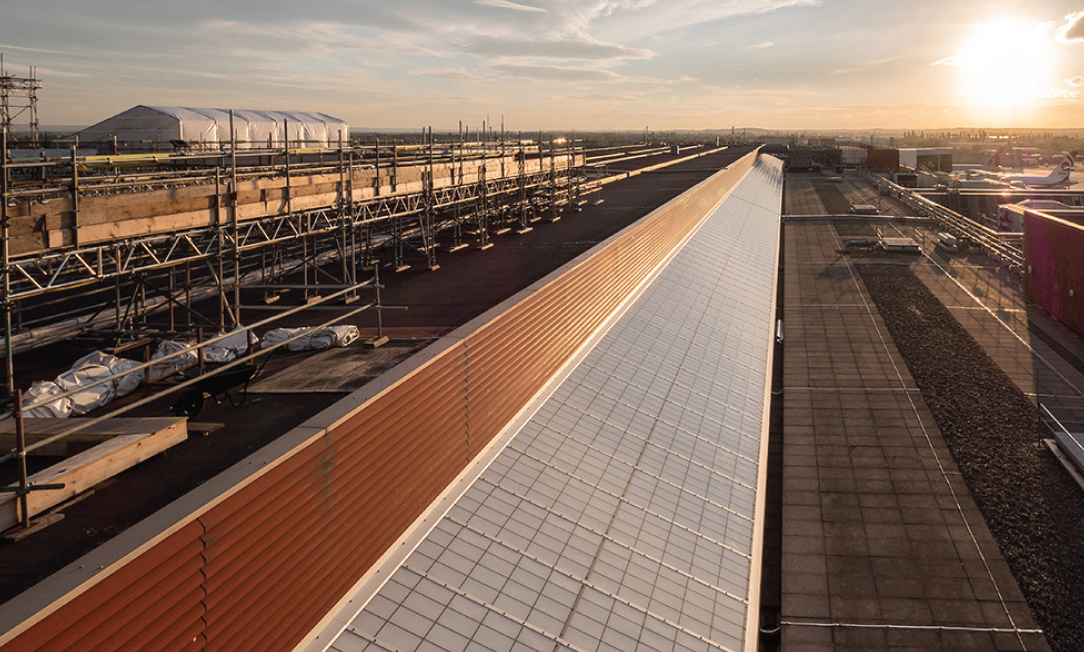

The whole retrofit was completed externally using a custom moving scaffold and during evening hours, meaning there was no disruption to the inside of the building. And, as far as value, the lightweight translucent panels allowed for the existing substrate to be adapted and reused – a savings of nearly $9 million (£7m) in project costs and more than a year off the build timeline.

“Structura UK was a new supplier to the major capital projects programme on the Airport (and) they delivered a flawless installation despite multiple challenging circumstances including adverse unseasonal weather, unexpected contaminated materials and multiple design changes,” says Ben Hooper, Senior Project Manager at Heathrow.

Structura worked in conjunction with Structural Engineers Webb Yates for a scheme designed by Pascall+Watson architects. The project proved so successful that main contractor Balfour Beatty named Structura as their ‘Most Promising New Supplier 2018’.

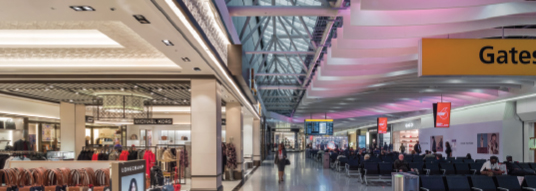

Kalwall offers complete line-of-sight protection, maintaining privacy for the security screening area and departure lounges while bathing the interior with diffused daylighting, regardless of the weather. Apart from providing the visual protection, its inherent strength and heavy-duty impact resistance make it ideal for secure locations such as this. It offers the highest protection in terms of wind-borne debris and resistance to impact, abrasion and point loads. Not only is it man safe, but Kalwall achieves S:AA (BS 476 part 3) and Broof(t4) to EN 13501 part 5 for external fire performance.

The exterior face is color stable and includes a UV resistant, self-cleaning surface. This means that normal rainfall helps to keep the surface free of dust and dirt while at the same time retaining its original color during the weathering process.

Download Project Report

Specifications

Panel: 4˝ | 100 mm
Grid core: shoji
Exterior FRP: crystal
Interior FRP: white
System finish: clear anodized
U-Value: .15 | .86 Wm2K
Solar Heat Gain Coefficient: .09
Visible Light Transmission: 13%
